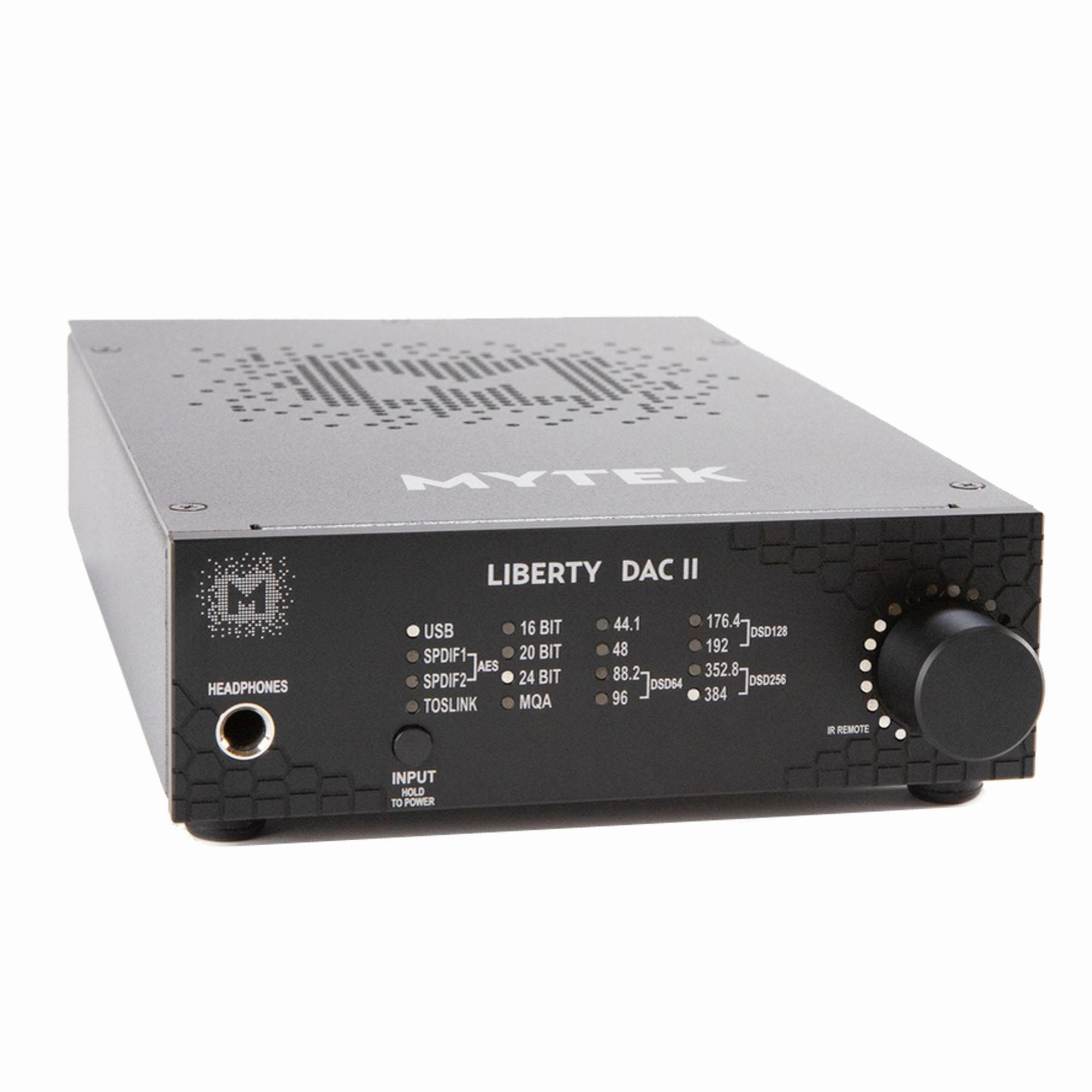

Liberty DAC II provides robust performance in small portable 1/3 rack package featuring several digital inputs, digital volume control and unbalanced as well as balanced audio outputs and a high performance headphone amplifier.
Our Take
Designed as a little brother of Brooklyn DAC, Liberty DAC is Mytek's most affordable, yet exceptional, PCM/MQA/DSD USB2 DAC designed for high quality music playback and monitoring.
Features
Reference Level High Current 1/4" SE Headphone Amp
Built in certified hardware MQATM decoder
USB2 Class2 (OSX, Linux driver-less, all audio formats)
ESS Sabre 9038 DAC
Built in oversized 60W linear toroid Power Supply with automatic voltage switching
192kHz (DSD64 DOP) AES/EBU Input
2x S/PDIF (PCM up to 192k, up to DSD64 DOP)
Toslink/ADAT & 2x S/PDIF (PCM up to 192k, up to DSD64 DOP)
1x stereo pair Unbalanced RCA Outputs
1x stereo pair Balanced XLR Outputs
Upgradable Firmware via USB & a 2 Year Warranty
Technical Specs
Frequency Response
20Hz to 20kHz
Headphone Output
up to 300mA and 3W
Clock Generator
Low noise with 10ps of jitter
Conversion
Up to 384k, 32bit PCM, native DSD, up to DSD256, DXD
Output Impedance
.01 Ohm Impedance
Dynamic Range
127dB DR
Dimensions (including connectors)
WxDxH=5.5x8.8x1.74
Weight
4 lbs
