Presenting 705 S3?
Brought to you by Bowers & Wilkins
705 S3??s Carbon Dome tweeter is housed in a Solid Body Tweeter-on-Top enclosure evolved from the latest generation of 800 Series Diamond. That joins a new and subtly curved baffle endowed with an all-new ??pod?? housing for its Continuum Cone bass/midrange driver.
A house for high frequencies
The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance.
Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Truly amazing sound
Thanks to its composite construction, the Continuum? cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Product Specifications
Technical features | Decoupled Carbon Dome tweeter |
Description | 2-way vented-box system |
Drive Units | 1x ?25mm (1 in) Decoupled Carbon Dome high-frequency |
Frequency Range (-6dB) | 45Hz and 33kHz |
Frequency Response | 50Hz - 28kHz |
Sensitivity | 88dB |
Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis) |
Impedance Nominal | 8? (minimum 3.7?) |
Recommended amplifier power | 30W - 120W into 8?? on unclipped programme |
Dimensions | ? |
Height | Height: 345mm (13.6 in) cabinet only 413mm (16.3 in) including tweeter |
Width | 192mm (7.6 in) cabinet only |
Depth | 297mm (11.7 in) cabinet only |
Net Weight | 9.58kg (21.1 lb) |

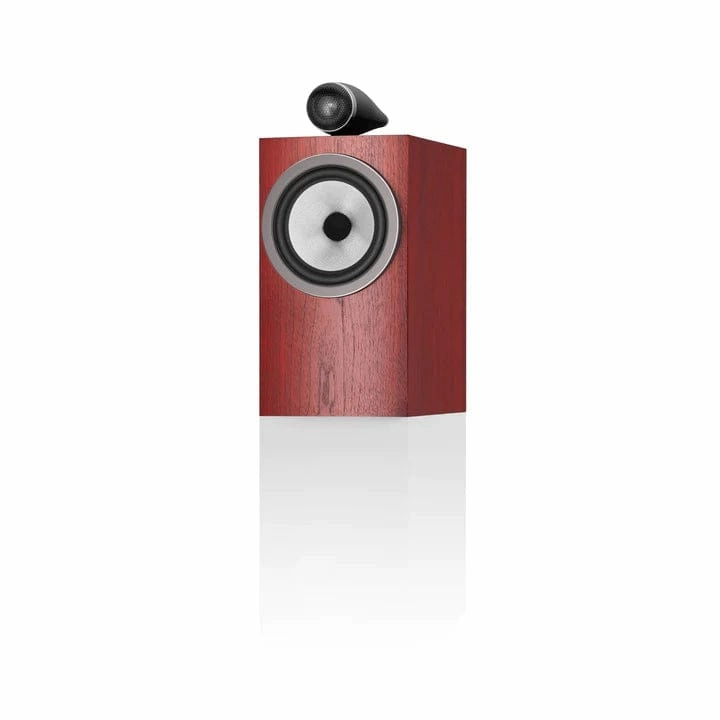

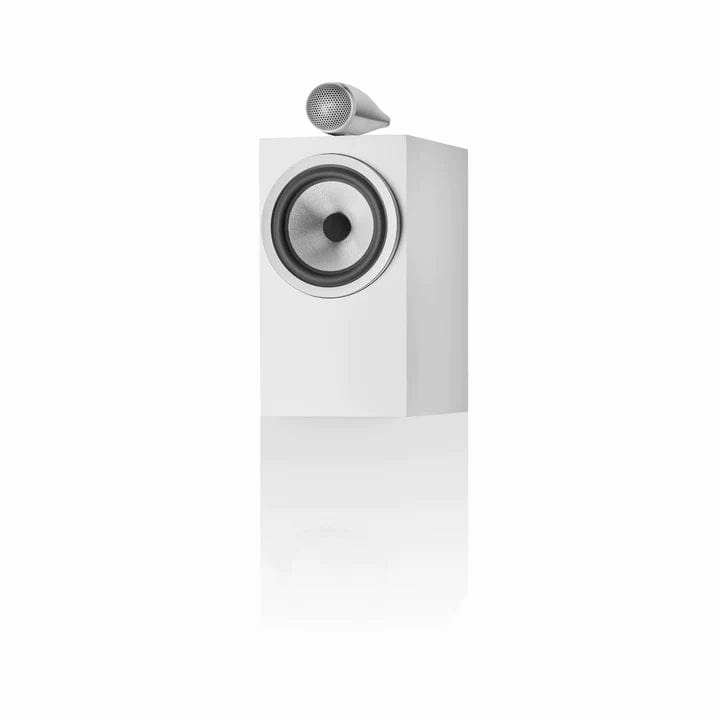

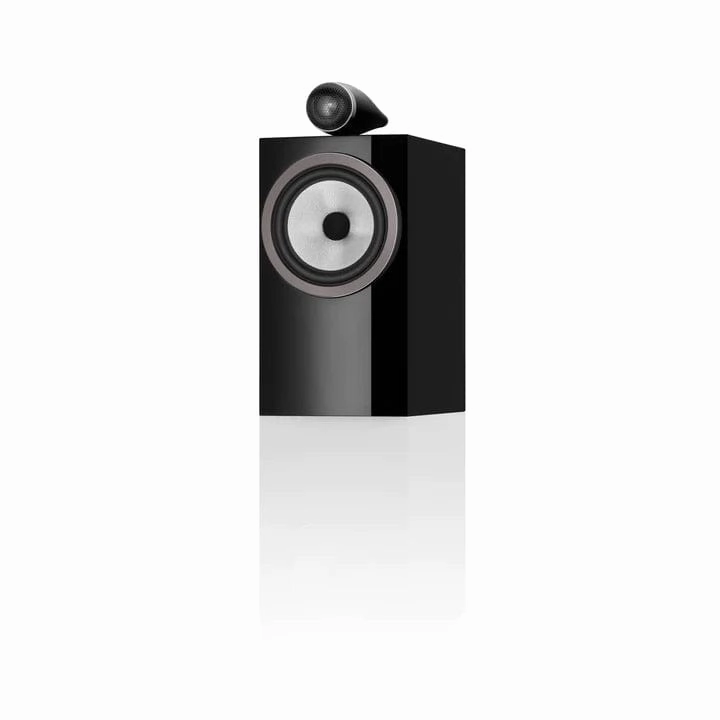

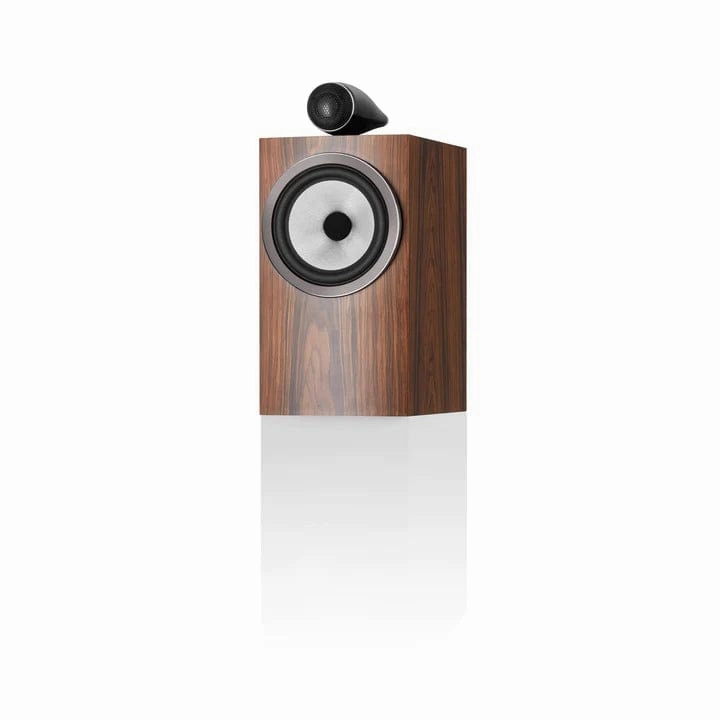

Cabinet finishes | Gloss Black Satin White Mocha Rosenut |
Grille Finishes | Black Gray (Satin White only) |
*Reprint from Manufacturers website
