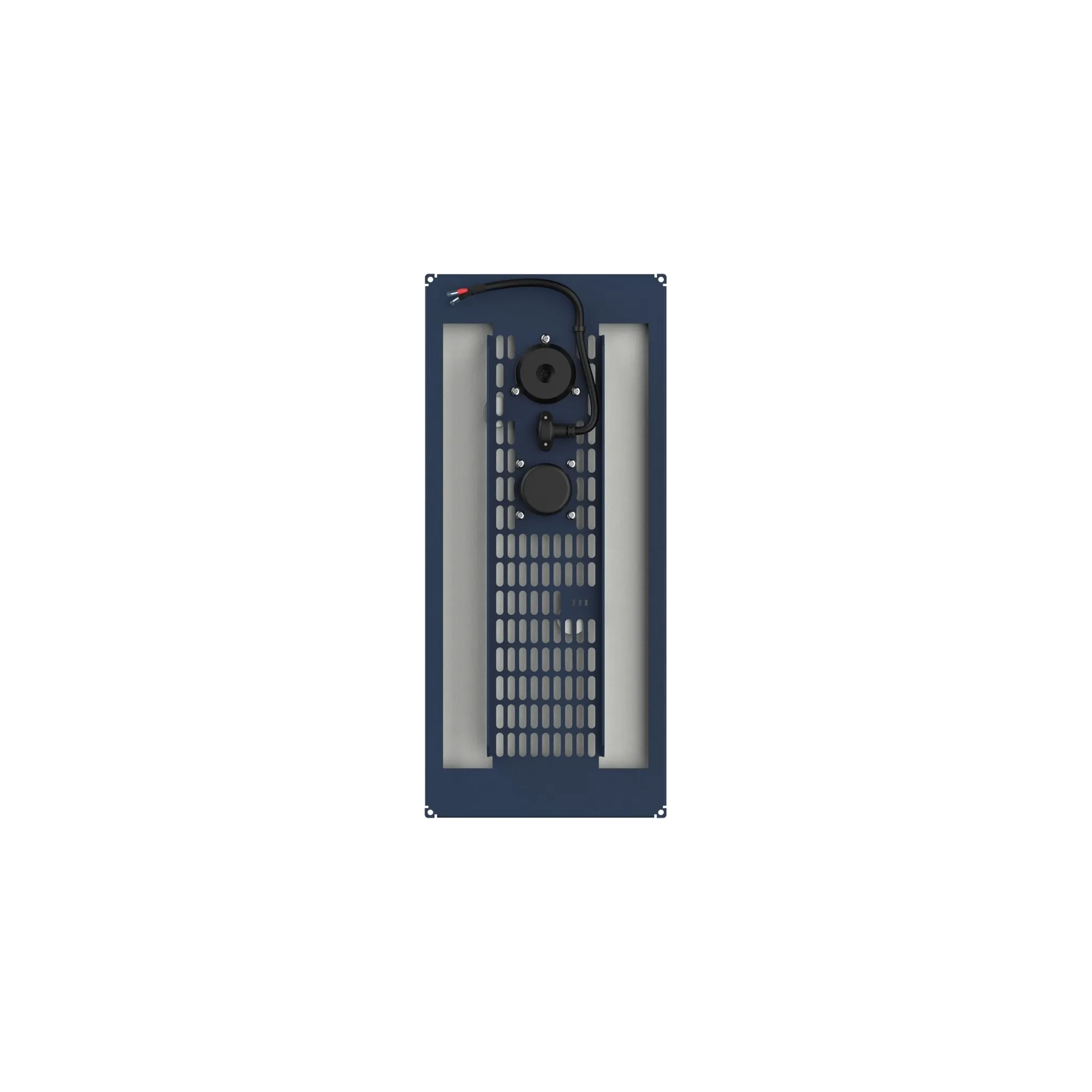

The Mobius5i/S200 provides a slimline alternative to the Mobius5i invisible loudspeaker, for use when there is limited stud/joist spacing or for use in curved walls/ceilings with a radius greater than 6m. Using the same OptiDrive and OptiDamping technology as the full-size Mobius5i and benefitting from the i upgrade, the Mobius5i/S200 is easy to install and is rendered invisible behind a 2mm plaster skim or other material such as solid wood, veneers, leather or stone veneers such as slate. The Mobius5i/S200 is the perfect solution for aesthetically sensitive applications where space is limited.
Example Applications
Invisible audio installations with space limitations or when installing into a curved wall or ceiling. Can be supplied with high-impedance 100/70V transformer for integration into high impedance audio systems
Specifications:
| Nominal impedance | 4 Ohms |
| Power handling (100 hour continuous/peak) | 50W/100W |
| Sensitivity (@ 1m/2.83Vrms) | 84dBSPL (with 2mm plaster skim) |
| Frequency response (-6dB) | 90Hz - 30kHz |
| Useable frequency range ( /-10dB) | 65Hz - 32kHz |
| Dispersion angle | 180 x 180 at specified frequency range |
| Electrical connection | Blue butt-splice crimp terminals (14-16 AWG) |
| Dimensions | 450mm x 200mm x 32mm (173/4 x 77/8 x 11/4) |
| Product weight | 1.1Kg (2lb 7oz) |
| Fixing requirements | Backbox CV200/SW200 or Mounting Blocks |
| In-line protection unit | APUi50C_2, APU-RS8iC or APU-RS16iC |
| Manufacturer limited warranty | 10 years |
